Alsina A-Frame Systems

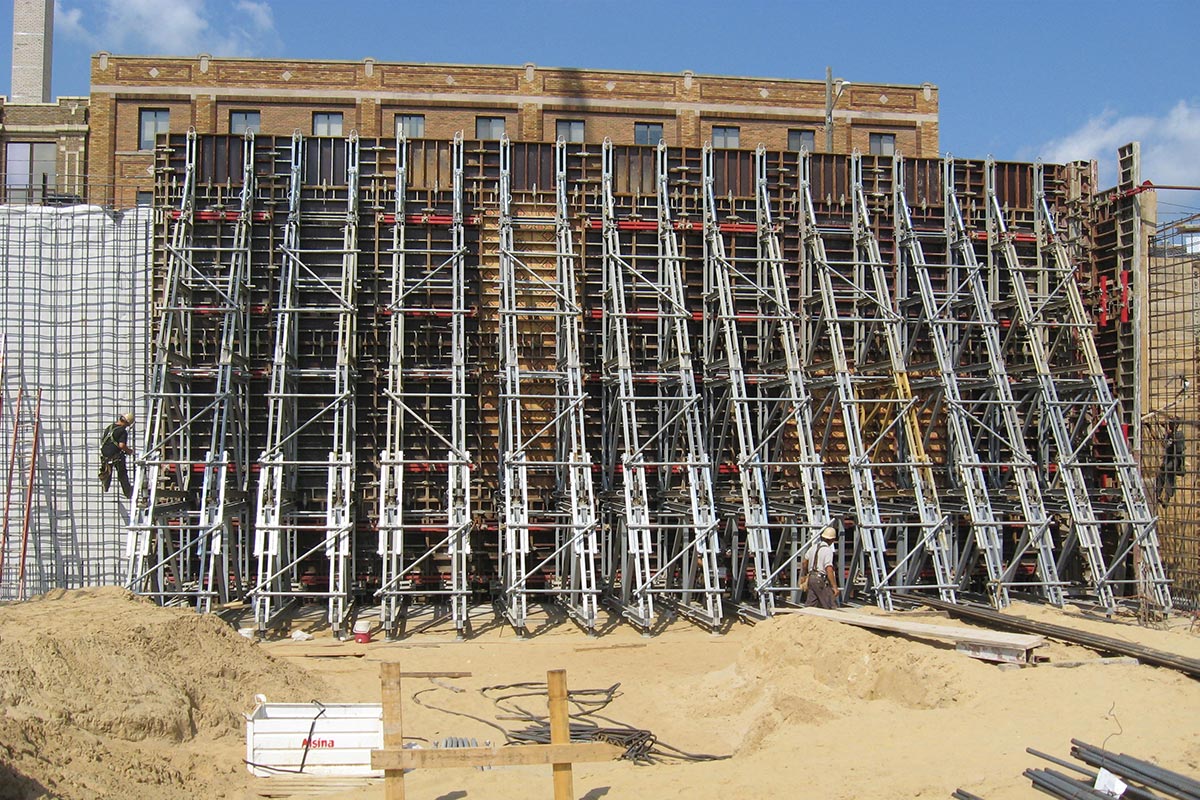

Alsina A-Frame concrete wall forming system is a system specially engineered to for single sided forming. This is due to a unique support structure that consist of reinforced brace frames that are coupled with 2 horizontal walers and grade level anchors to allow concrete loads to be transferred safely. This support structure eliminates the need for traditional form ties.
In urban areas the Alsina forming system is the go-to solution for forming a one-sided concrete wall. A one-sided wall is commonly required in construction situations where foundation walls need to be erected in limited space.
Single sided formed concrete walls are often constructed below grade or buttoning against existing structures. The back side or blind-side of the normally requires a form of waterproofing to prevent future erosion.
- One-sided, tieless support system for Alisply
- Blindside Wall Waterproofing
- Low-wall system supports wall heights 9' to 18'
- High-Wall system supports wall heights from 18’ to 30’
- Compatible with work platforms
- A-Frame supports move with formwork
To start your formwork rental, use our Get a Quote feature or call our location closest to your project’s site. For more information on formwork accessories & equipment view our Accessory Catalog.
